With fast, professional, efficient and high-quality service, breeding becomes smarter and simpler.
Frame : hot dip galvanized steel
Fan blade : stainless steel
Specifications : 1380×1380×1300mm
Air volume : 43900m³/h
Function : ventilation and cooling
Voltage : 380V
Material : Steel structure
Motor power : 1.1KW
Frequency: 50HZ
Production capacity : 50,000 units/year
Origin : China

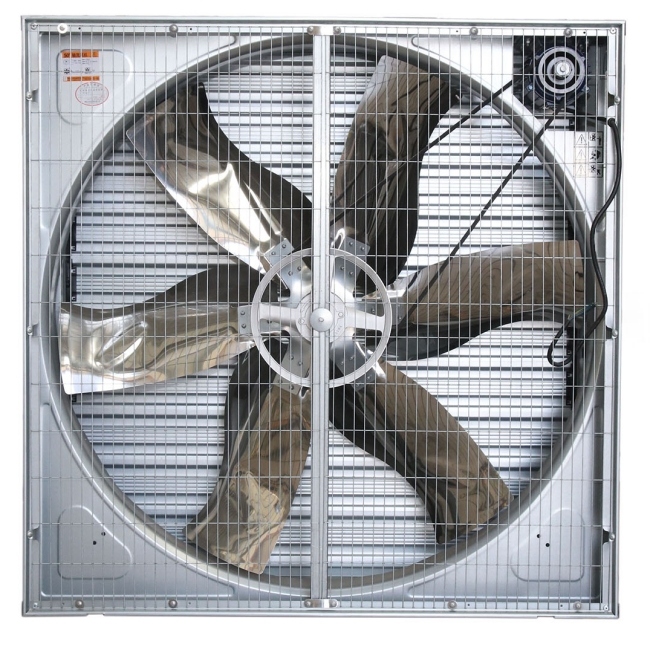

| Model | 52 ( Box exhaust fan ) | 50 ( Box exhaust fan ) | 50 ( Butterfly cone fan ) |
| Number of blades | 6 items | 6 items | 6 items |
| Blade diameter | 1320 (52) mm | 1270 mm | 1270 mm |
| Motor power | 1.8 kW | 1.1 kW | 1.1 kW |
| Fan size | 1425 mm x 1425 mm | 1370 × 1370 mm | 1370 × 1370 mm |
| Number of shutters | 10 items | 10 items | Air duct |
Butterfly door duct fans are suitable for poultry breeding ventilation and have good wind beam effects.
1. The sheet is made of 270g/m2 hot-dip galvanized sheet.
2. The 430BA stainless steel blades have been dynamically balanced to make the fan run more smoothly and more efficiently.
3. Reasonable bell mouth design, low noise, large air volume, strong air extraction force and low operating cost
4. It adopts advanced front butterfly door double-door mechanism with small wind resistance, good sealing and high efficiency. It can effectively prevent dust, dirt and other impurities from damaging the blades and internal structure, thereby extending the service life of the fan.
5. Each fan needs to be individually inspected before leaving the factory.
6. The fans are available in two types: vertical and inclined, which can effectively meet the requirements of different sites.
Chicken house exhaust fans are ventilation equipment specially designed for chicken house environments. They can effectively exhaust dirty air, moisture and harmful gases in the chicken house, while introducing fresh air to create a comfortable and healthy growth environment for the chickens. Exhaust fans have the characteristics of high efficiency, low noise and stable operation. They can be adjusted and controlled according to the actual needs of the chicken house to ensure good air circulation in the chicken house and ensure the health and production performance of the chickens.
