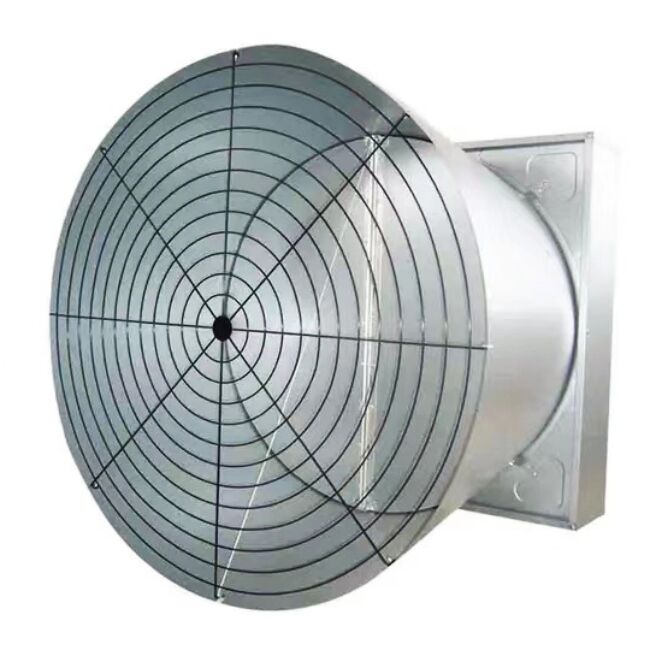

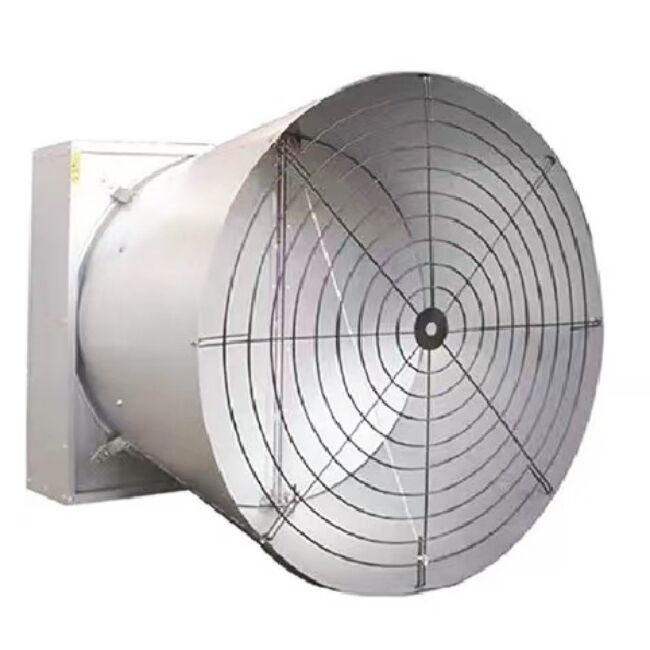

Factory poultry house greenhouse warehouse exhaust hammer fan

Frame : hot dip galvanized steel

Fan blade : stainless steel

Specifications : 1380×1380×400mm

Air volume : 42000m³/h

Function : ventilation and cooling

Voltage : 380V

Material : Steel structure

Motor power : 1.1KW

Frequency: 50HZ

Production capacity : 50,000 units/year

Origin : China

Chat Now

Product overview

With fast, professional, efficient and high-quality service, breeding becomes smarter and simpler.

Product Details

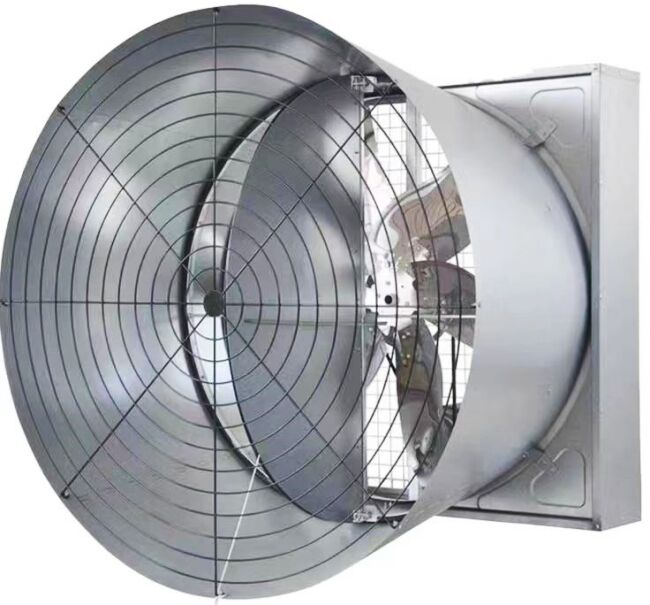

The fan is mainly composed of fan blades, a motor,an outer frame,a protective net,a support frame, shutters, etc. Its main components are made of galvanized sheets and stainless steel sheet through a one-time stamping process using by CNC machine tools; this product is widely used for ventilation and cooling of various livestock and poultry farms, flower greenhouses, industrial plants and other places.

Model	52 ( Box exhaust fan )	50 ( Box exhaust fan )	50 ( Butterfly cone fan )
Number of blades	6 items	6 items	6 items
Blade diameter	1320 (52) mm	1270 mm	1270 mm
Motor power	1.8 kW	1.1 kW	1.1 kW
Fan size	1425 mm x 1425 mm	1370 × 1370 mm	1370 × 1370 mm
Number of shutters	10 items	10 items	Air duct
